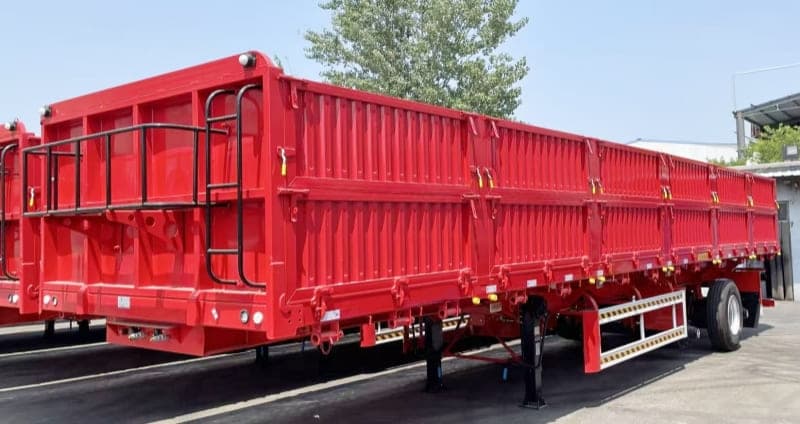

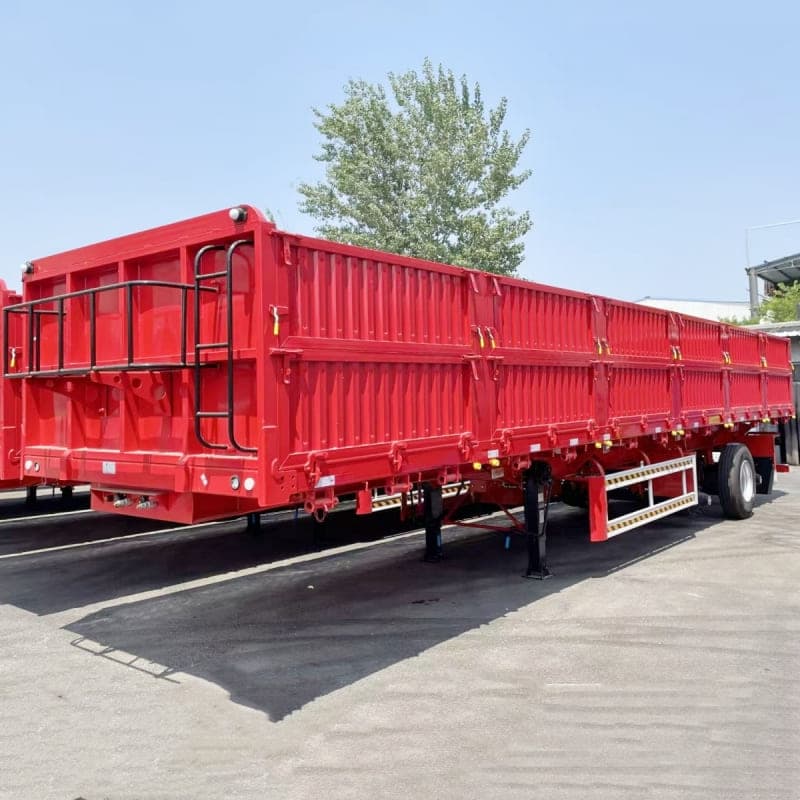

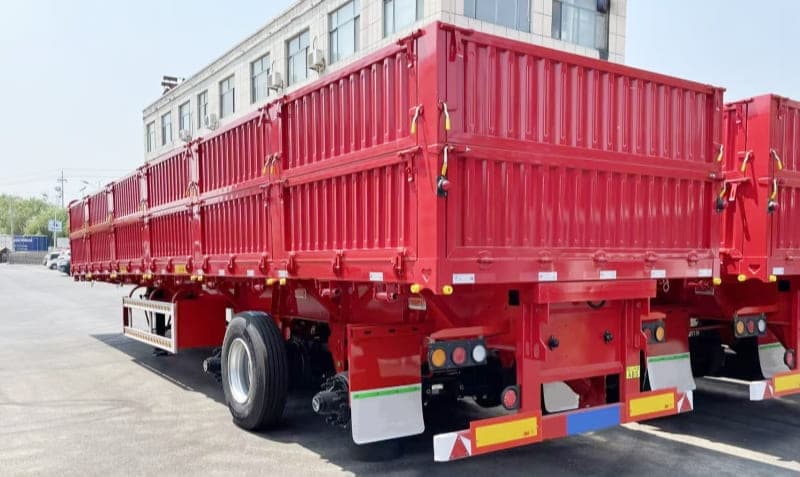

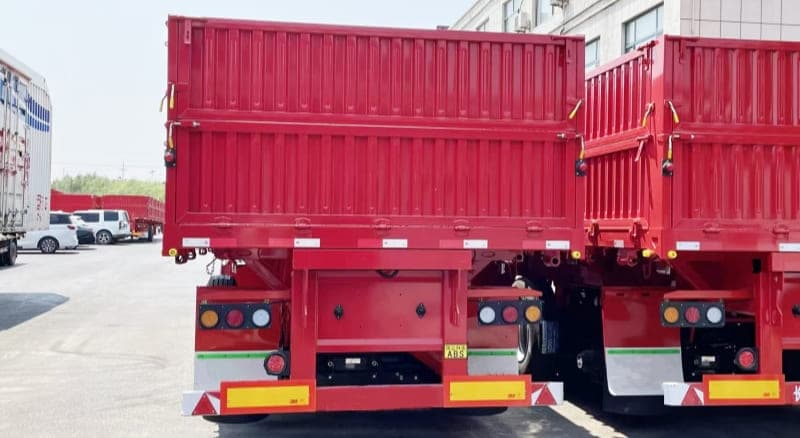

Reman Tri Axle 60 Ton Drop Side Trailer
Full system renewal on chassis, suspension and brake assembly for REMAN ROAD reman drop side trailers. Flexible turning performance fits urban and rural narrow road conditions, with long-term anti-corrosion protection for the cargo body.
Reman Drop Side Trailers Description
- Calculated based on 3-year whole vehicle operation cycle, REMAN ROAD reman drop side trailers achieves the lowest comprehensive operation cost among new vehicles, ordinary used vehicles and simply refurbished vehicles.
- REMAN ROAD reman dropside trailer for sale purchase price is far lower than brand-new sidewall trailers, which greatly eases capital turnover pressure for small freight entrepreneurs.
- Compared with unrenovated second-hand trailers, reman side board trailer avoids repeated expenditure on axle maintenance, brake repair and frame correction; standardized remanufacturing extends the effective service life by more than double.
- All key load-bearing components undergo strict flaw detection before delivery, the foldable side wall hinge structure is thickened and reinforced to resist frequent opening and closing wear, and the whole vehicle anti-rust coating delays body aging.
- REMAN ROAD reman drop side trailers can steadily undertake medium-load transportation tasks of agricultural products, building materials, hardware supplies and daily groceries, bringing continuous and stable freight income while minimizing vehicle maintenance downtime.
Technical Parameter Configuration Table
- Overall Dimension: 12500x2500x3260mm
- Loading Capacity(ton): 60T
- Trailer Sides: 1200mm
- Tire Configuration: 12.00R22.5 Deep Tread Off-Road Tires, 12 Units
- Suspension System: Mechanical Leaf Spring Suspension, Recalibrated & Fully Serviced
- Landing Gear: Heavy-Duty Landing Gear with Complete Lubrication Maintenance
- Brake System: Dual-Circuit Air Brake System, Full Pipeline Renewal + Air Tightness Testing
- Main Chassis Beam: High Strength Manganese Steel, Straightened, Stress Relieved & Weld Reinforced
- Cargo Floor: 3mm Thick Anti-Slip Pattern Steel Plate
- Sidewall Structure: Full Foldable Drop Side Panels, Removable, Reinforced Hinges & Lock Latches
- Front Bulkhead: Integrated Stamped Steel Front Board, Anti-Collision Reinforcement Design
- Electrical System: New Complete Wiring Harness, Waterproof Connectors, LED Tail Lamps & Full Reflective Markings
- Anti-Corrosion Treatment: Full Sandblasting Derusting + Primer + Intermediate Paint + Weather Resistant Topcoat
- Remanufacturing Standard: Full Disassembly Inspection, Fatigued Parts Total Replacement, Chassis Calibration, Pre-Delivery Road Test
- Applicable Scenarios: Construction Material Transport, Grain & Farm Goods Haulage, Urban & Rural Regional General Freight
Trailer Remanufacturing Process
- REMAN ROAD reman drop side trailers undergoes full disassembly inspection as the starting step of remanufacturing. We strip down the entire cargo box, running gear and chassis frame to screen usable components and discard all parts reaching fatigue service limits.

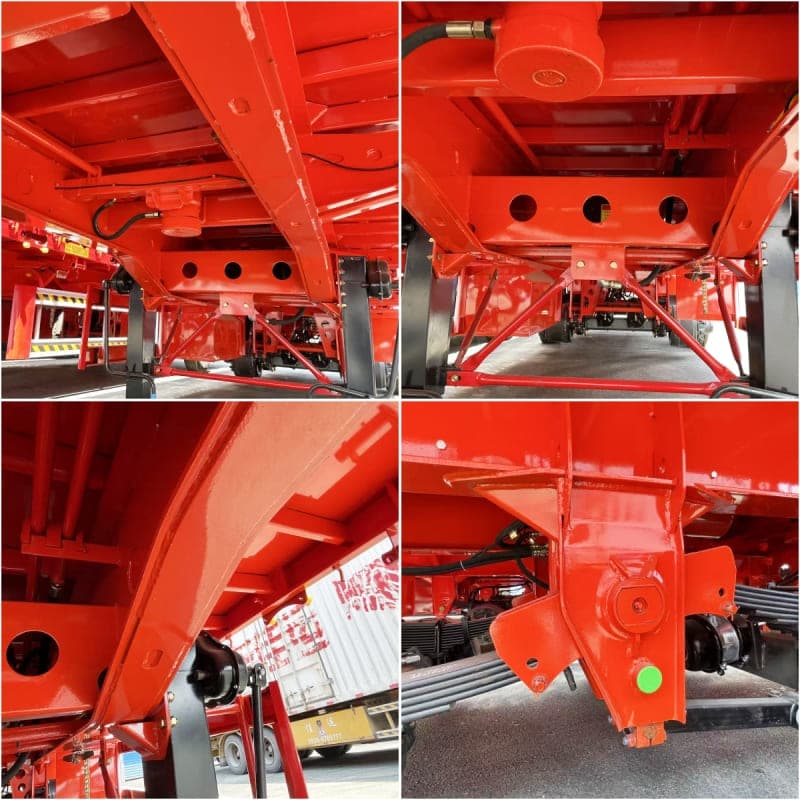

- Longitudinal main beams with bending deformation are mechanically straightened, then subjected to high-temperature stress relief treatment to eliminate internal metal fatigue caused by long-term overload transportation.
- All welding joints are inspected via ultrasonic flaw detection, and tiny cracks are reinforced by secondary full penetration welding to recover the original torsional rigidity of the chassis.
- The dual-axle assembly, hub assemblies, leaf spring suspension and whole air brake system are completely renewed with matched heavy-duty spare parts.
- Axle load balance is finely calibrated to avoid unilateral tire excessive abrasion. The entire air circuit undergoes dozens of high-pressure air tightness tests to rule out air leakage, braking lag and deviation issues.
- All foldable side panels, side latches, front bulkhead and rear tailboard are corrected for deformation; all locking buckles, hinges and connecting bolts are replaced with brand-new fasteners, ensuring the sidewalls can be opened and closed smoothly for convenient cargo loading and unloading.
- The whole reman cargo sidewall trailer goes through full sandblasting rust removal, followed by three-layer anti-corrosion coating: anti-rust primer, intermediate adhesion paint and outdoor weather-resistant topcoat, adapting to rainy, dusty and varied outdoor working environments.
- Before delivery, empty-load and half-load road tests are carried out to adjust suspension buffering and braking coordination. Every renovation step and parts replacement record is archived permanently for full quality traceability.
Why Choose Remanufactured Sidewall Trailer for Sale?
- Second Hand Cargo Sidewall Trailer
Although the entry purchase cost is the lowest among all options, long-term hidden risks are prominent: main frame metal fatigue accumulated from years of heavy loading, deformed side panels, degraded braking pipelines and unbalanced axle load bearing.
Frequent breakdowns will occur during daily short-distance and medium-distance transportation, bringing continuous maintenance fees, cargo damage risks and forced work downtime losses. - Brand New Cargo Sidewall Trailer
The obvious drawbacks lie in high upfront procurement expenditure and rigid delivery cycles. For small-scale regional haulage teams and scattered individual freight operators, purchasing brand-new trailers will occupy most working capital; meanwhile, fixed production schedules cannot respond quickly to urgent transportation business demands. - Simple Refurbished Sidewall Trailer
Dealers merely carry out exterior paint renovation and partial worn tire replacement to cover up aging appearances. Internal chassis stress damage, suspension fatigue and brake system aging are never resolved. After several months of continuous haulage, various mechanical faults will break out intensively, and the actual service life is close to ordinary used trailers. - REMAN ROAD Industrial Reman Cargo Sidewall Trailer
We adopt standardized remanufacturing workflows to restore the whole 3 axle sidewall trailer performance to new-car level. All failed and worn components are fully replaced; frame stress relief, structural correction and system calibration are completed strictly according to heavy truck industrial norms.
Compared with brand-new vehicles, it cuts overall procurement costs drastically; compared with ordinary used & simple refurbished trailers, it eliminates all potential mechanical failures.
