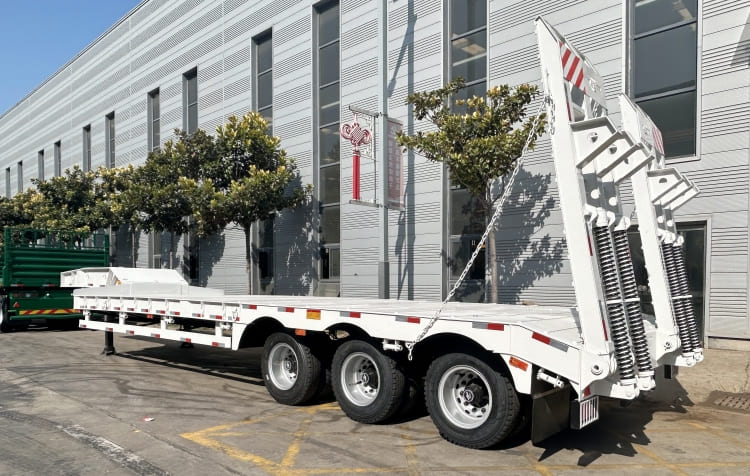

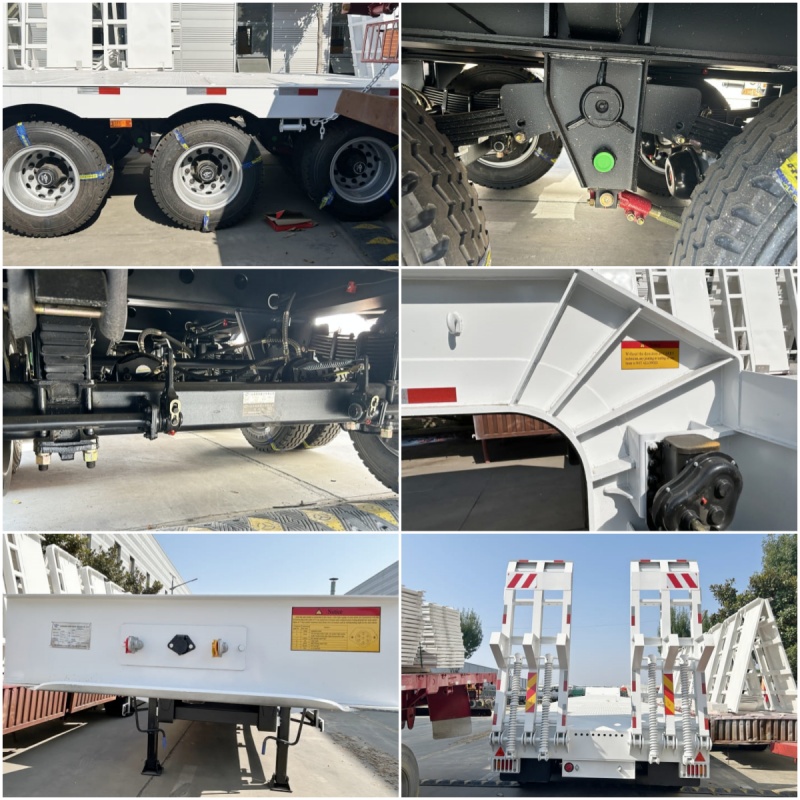

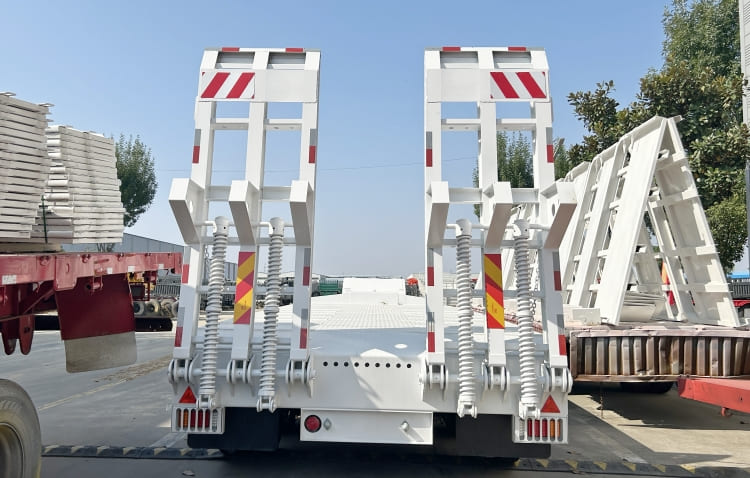

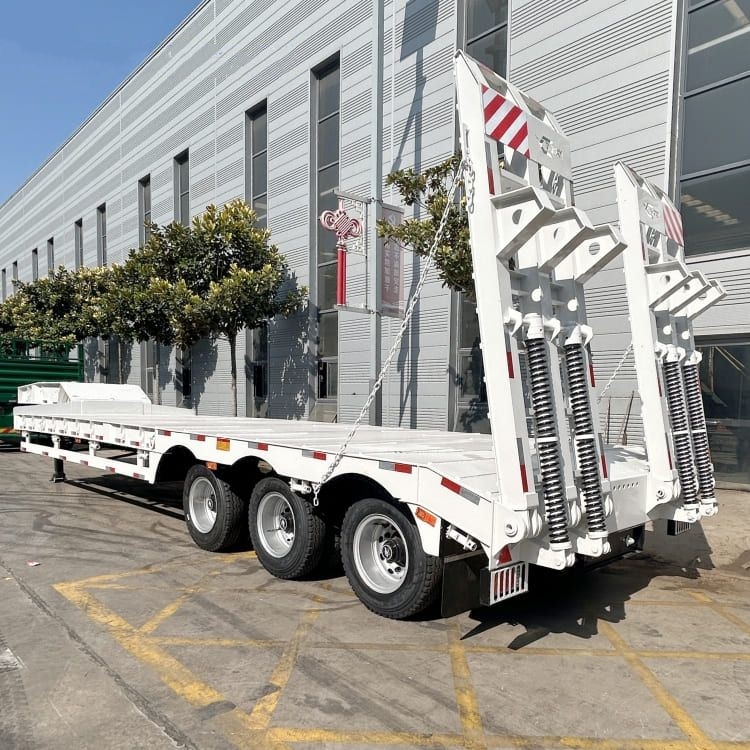

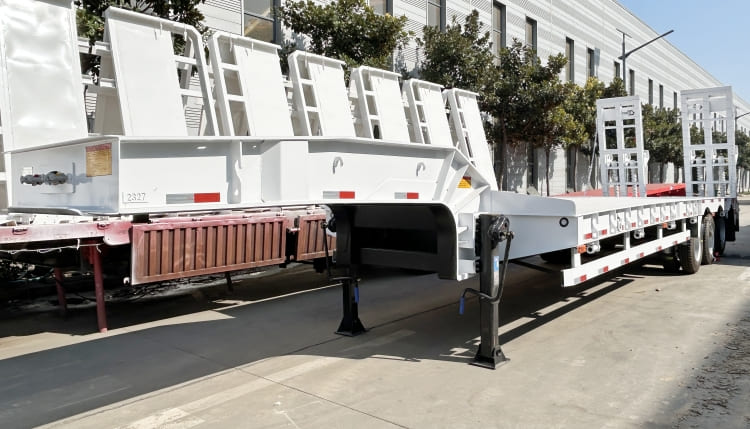

Remanufactured 3 Axle 60 Ton Low Bed Trailer
Built for oversized heavy equipment transportation, this reman low bed trailer for sale eliminates frame bending, suspension fatigue and brake attenuation accumulated from previous heavy haul tasks through systematic reman steps. Ultra-low deck height enables easy loading and secure fixing of tall engineering vehicles, serving as a reliable transport tool for overseas machinery leasing companies.
Reman Low Bed Trailer Description
- Predictable full-lifecycle operating costs and powerful oversized cargo adaptability form the core competitiveness of this reman low bed trailer for sale.
- Standardized remanufacturing procedures thoroughly eradicate hidden structural deformation and brake system risks that widely exist on undocumented second-hand lowbed trailers.
- The whole reman heavy duty low bed trailer is sprayed with wear-resistant anti-corrosion paint, and all safety reflective marks are updated to comply with international oversized cargo transport regulations. Complete overhaul archives record every restoration detail to facilitate regular maintenance arrangement for fleet managers.
- This 3 axle low bed trailer achieves load-bearing safety and service life close to brand-new lowbed trailers while greatly reducing upfront procurement investment, extensively applied in excavator delivery, engineering equipment leasing and cross-border machinery transportation projects.
Technical Parameter Configuration Table
- Name: Remanufactured 3 Axle Low Bed Trailer
- Rated Loading Capacity: 60 – 80 Ton
- Main Frame Material: Q355 high tensile manganese steel; straightened, stress relieved and reinforced during remanufacturing
- Platform Type: Concave ultra-low gooseneck lowbed flat deck
- Suspension: Heavy-duty mechanical balanced suspension
- Brake System: Dual-circuit air brake + emergency parking brake
- Ladder: Double-side spring buffer folding climbing ramps, thickened high-strength steel plate welded structure
- Tire Spec: 11.00R20 / 12R22.5 heavy-duty trailer tires, 12 units
- Loading Feature: Reserved multiple tie-down lugs for machinery fixation
- Standard Reman Workflow: Full disassembly → Sandblasting cleaning → Flaw detection & frame correction → Axle & brake overhaul → Consumables renewal → Assembly calibration → Load & road testing
- Applicable Cargo: Excavators, loaders, bulldozers, cranes, all kinds of oversized construction machinery
Lowbed Trailer Remanufacturing Process
REMAN ROAD standardized lowbed trailer remanufacturing workflow covers full disassembly, structural repair, component renewal and strict factory testing to restore the used trailer to near-new performance standards.
- Pre-inspection & Vehicle Screening: Check overall frame deformation, axle wear, brake condition and service history of the incoming used lowbed trailer, eliminate severely damaged unrepairable units.
- Complete Full Disassembly: Take apart the whole 3 axle low bed trailer into frame beams, axles, suspension assemblies, brake pipelines, locking accessories and small spare parts one by one.
- Deep Cleaning & Sandblasting Rust Removal: Remove surface paint, rust, oil dirt and attachments from all steel structural components to expose raw metal base material.
- NDT Flaw Detection & Frame Rectification: Use professional testing equipment to check welding cracks, metal fatigue and beam bending; straighten deformed main beams and repair defective welding positions.
- Core Assembly Overhaul & Replacement: Disassemble four axles to replace worn bearings, adjust gear clearance; overhaul air brake chambers, valves and pipelines; renew all aging suspension elastic components.
- Consumables & Accessories Full Renewal: Replace tires, sealing rings, hydraulic hoses, wiring harnesses, safety reflectors and all vulnerable small parts with brand-new matched accessories.
- Precise Reverse Assembly: Assemble all renewed components step by step following factory torque standards, install and debug equipment fixed locking devices.
- System Calibration & Functional Debugging: Adjust braking synchronization, suspension balance and air circuit tightness to restore factory-standard running parameters.
- Performance Verification Tests: Carry out static overload load test, continuous road driving test and emergency brake test to confirm all indicators meet heavy haul requirements.
- Finishing Painting & File Archiving: Spray uniform anti-corrosion finish paint, paste safety signs, sort all overhaul records and archive permanently before delivery.
Why Choose Reman Low Bed Trailer for Sale?
- Brand new lowbed trailers adopt original factory integrated welding technology with complete official warranty, yet they require extremely high initial procurement funds and have long production and delivery cycles.
- Ordinary second-hand lowbed trailers feature the lowest purchase price, but undiscovered frame fatigue, axle wear and brake faults will cause safety hazards and frequent breakdowns during oversized heavy machinery transportation.
- Simply surface-refurbished trailers only undergo exterior paint renewal and partial tire replacement, without frame disassembly and internal system overhaul, latent structural risks will rapidly appear under continuous ultra-heavy load operation.
- REMAN ROAD reman low bed trailer for sale are restored via complete standardized reman procedures, with frame correction, axle overhaul and multi-round load verification finished, realizing safe heavy haul performance while greatly optimizing total full-lifecycle expenditure for global heavy equipment transport fleets.
