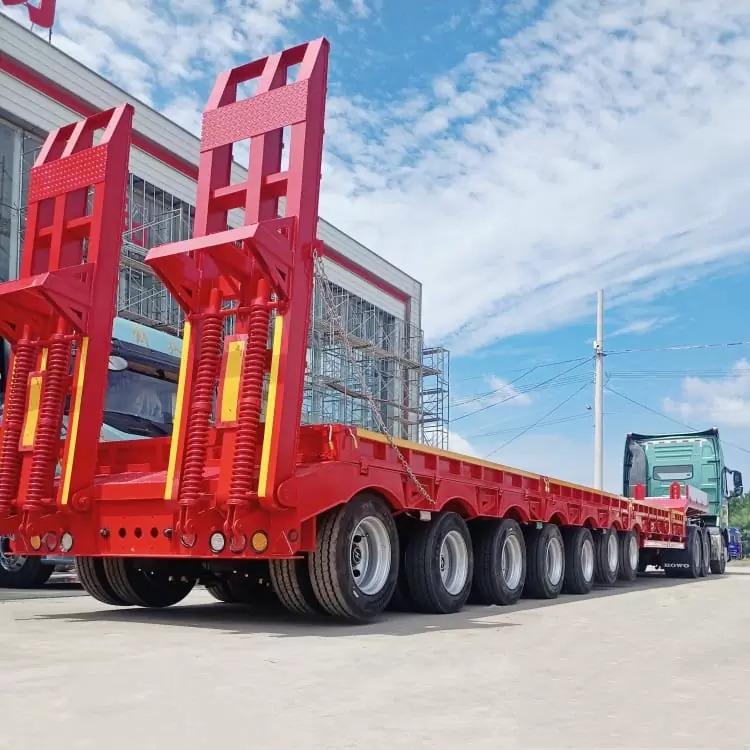

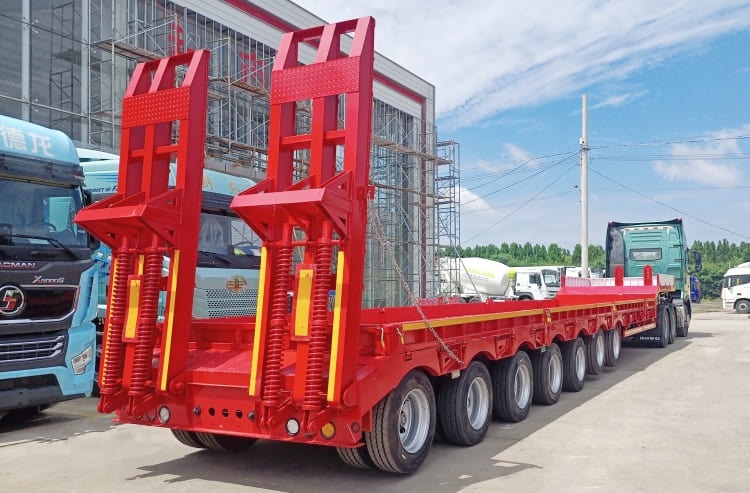

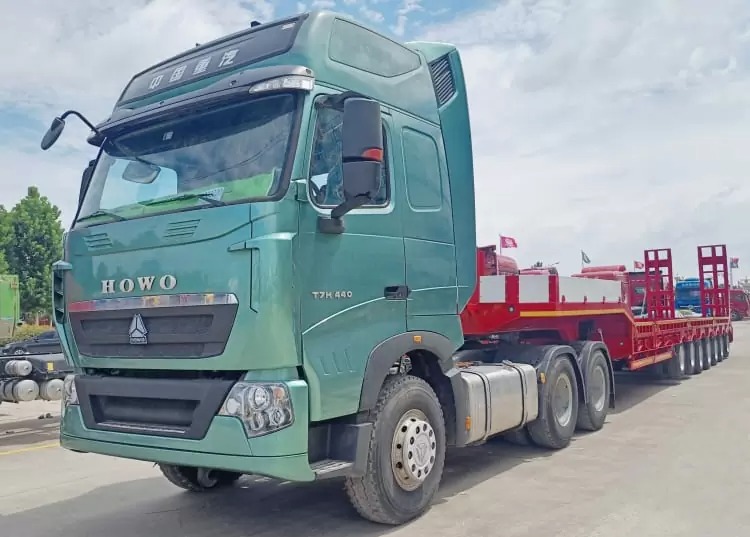

Reman 7 Axle Heavy Duty Lowbed Trailer

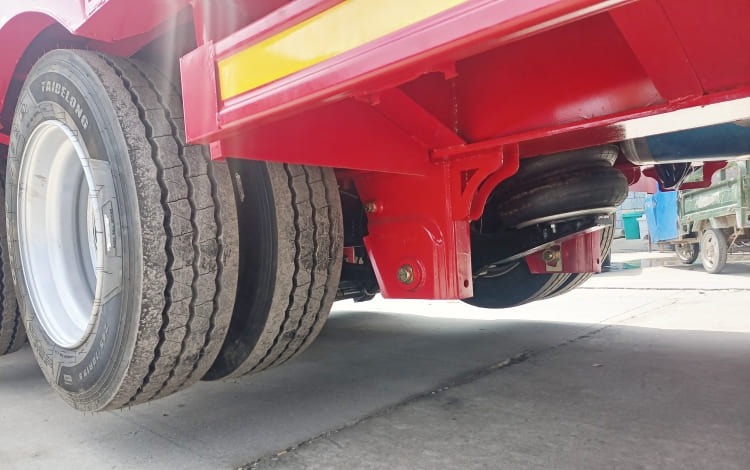

REMAN ROAD reman heavy equipment trailers for sale is renovated via strict closed-loop remanufacturing procedures. The main load-bearing beam undergoes complete stress relief to erase years of accumulated metal fatigue caused by overloading. All 7 sets of axles and suspension assemblies are fully disassembled, inspected and fitted with brand-new bearings, brake pads and leaf springs.
Reman Heavy Equipment Trailer Description
- We carry out targeted remanufacturing upgrades for this multi axle low bed trailer, addressing actual pain points of cross-border oversized cargo transport.
- Long-distance full-load travel easily triggers offset load among 7 axles and partial frame deformation, so REMAN ROAD rebalance axle load distribution and optimize leaf spring hardness to prevent overstress damage.
- To meet strict road inspection standards across multiple countries, all lights, reflective markings and safety accessories are updated to internationally compliant styles, and braking performance passes global highway certification requirements.

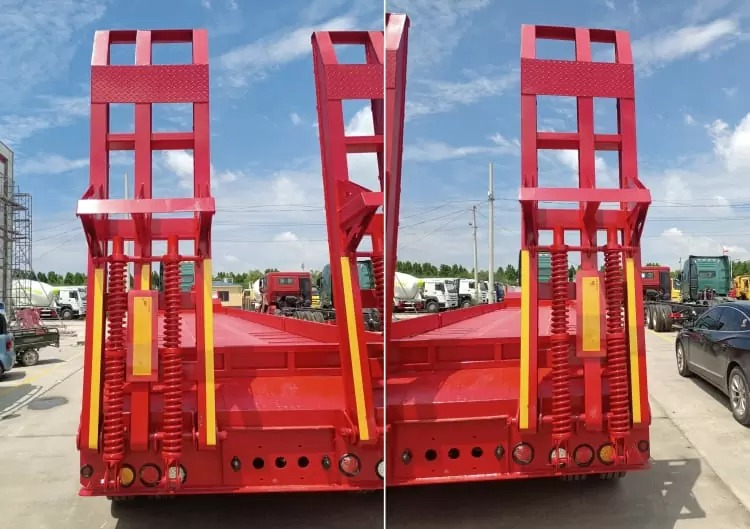

- The reman step deck trailer rear dual spring ramps are upgraded with higher bearing tolerance to bear heavy construction machinery without bending during climbing; the worn platform surface is welded with wear-resistant steel plates for enhanced compression and scratch resistance.
- All official reman heavy trailer truck chassis parameters remain unchanged during remanufacturing, retaining the original maximum loading capacity, while permanently fixing all inherited problems including frame fatigue, braking decay and ramp malfunction.
Technical Parameter Configuration Table
- Name: Remanufactured 7 Axle Lowbed Trailer 150 Ton
- Rated Loading Capacity: 150 Ton
- Main Frame Material: high tensile manganese steel; straightened, stress relieved and reinforced during remanufacturing
- Axle: 7 heavy-duty integrated trailer axles
- Platform Type: Concave ultra-low gooseneck lowbed flat deck

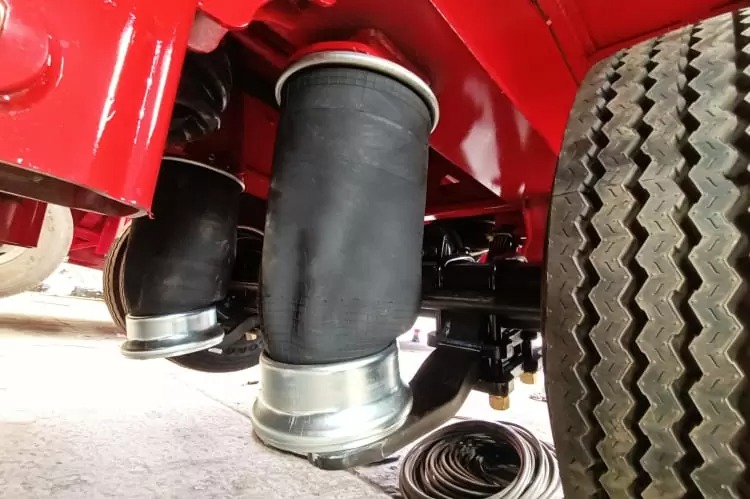

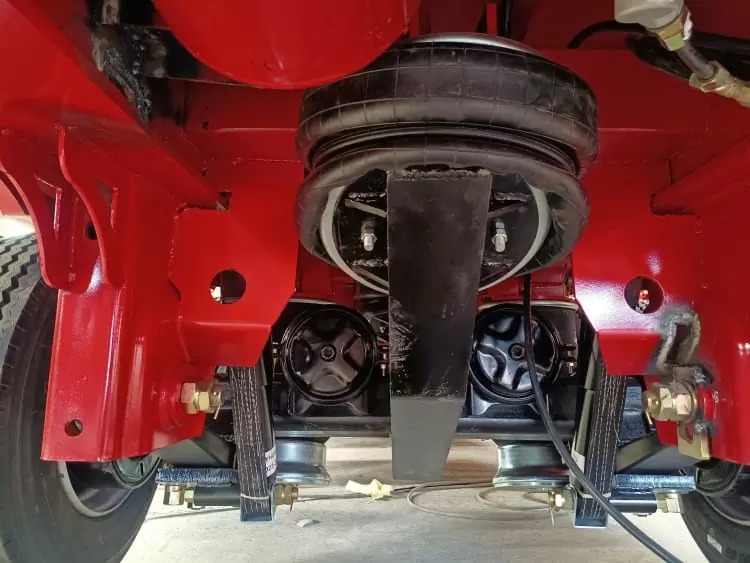

- Suspension: Full Air Suspension System, Multi-layer rubber air springs, automatic height regulating valves, complete pneumatic pipelines
- Brake System: Dual-circuit air brake + emergency parking brake
- Ladder: Double-side spring buffer folding climbing ramps, thickened high-strength steel plate welded structure
- Tire Spec: 11.00R20 / 12R22.5 heavy-duty trailer tires, 28 units
- Loading Feature: Reserved multiple tie-down lugs for machinery fixation
- Standard Reman Workflow: Full disassembly → Sandblasting cleaning → Flaw detection & frame correction → Axle & brake overhaul → Consumables renewal → Assembly calibration → Load & road testing
- Applicable Cargo: Transportation of excavators, mining machinery, oversized construction equipment
Lowbed Trailer Remanufacturing Process
- Complete Trailer Disassembly & Full Frame Flaw Detection
Take apart frame, axles, suspension, braking system and spring ramps entirely. Use ultrasonic testing to check cracks, deformation and metal fatigue on beams and axle housings, mark all areas needing repair.
- Main Beam Stress Relief, Calibration & Structural Reinforcement
Release internal stress inside the longitudinal beam, straighten bent sections, thicken and weld stress-concentrated bearing positions.
- Comprehensive Overhaul for Axle Running Gear
Disassemble every axle one by one, replace all worn bearings, brake shoes and leaf springs, calibrate load balance of axles precisely.
- Full Renewal of Brake System & Spring Loading Ramps
Replace the whole air brake pipeline and control valves; disassemble rear spring ramps, renew aged elastic components and adjust lifting pressure.
- Whole-Vehicle Synchronous Debugging & Payload Parameter Calibration
After assembly, adjust brake pressure difference, suspension damping and ramp lifting force to match rated heavy-load working conditions.
- Full-Load Endurance Test & Anti-Corrosion Painting for Delivery
Run long-time simulation tests on rough roads under full load to verify stability of frame, brakes and suspensions. Apply multi-layer anti-rust red paint, archive all overhaul documents before shipment.
Why Choose Reman Lowbed Truck Trailer for Sale?
- Brand new multi axle low bed trailer adopt original factory integrated welding technology with complete official warranty, yet they require extremely high initial procurement funds and have long production and delivery cycles.
- Ordinary second-hand lowbed trailers feature the lowest purchase price, but undiscovered frame fatigue, axle wear and brake faults will cause safety hazards and frequent breakdowns during oversized heavy machinery transportation.
- Simply surface-refurbished trailers only undergo exterior paint renewal and partial tire replacement, without frame disassembly and internal system overhaul, latent structural risks will rapidly appear under continuous ultra-heavy load operation.
- REMAN ROAD remanufactured lowbed trailers are restored via complete standardized reman procedures, with frame correction, axle overhaul and multi-round load verification finished, realizing safe heavy haul performance while greatly optimizing total full-lifecycle expenditure for global heavy equipment transport fleets.
