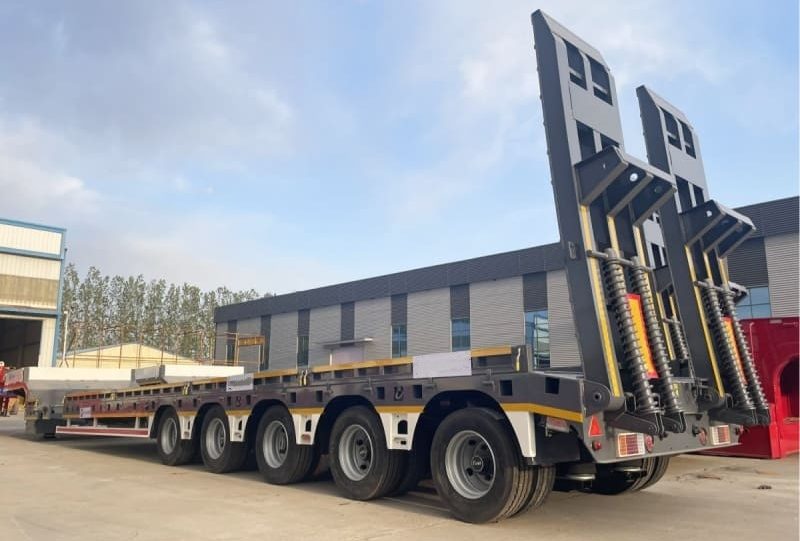

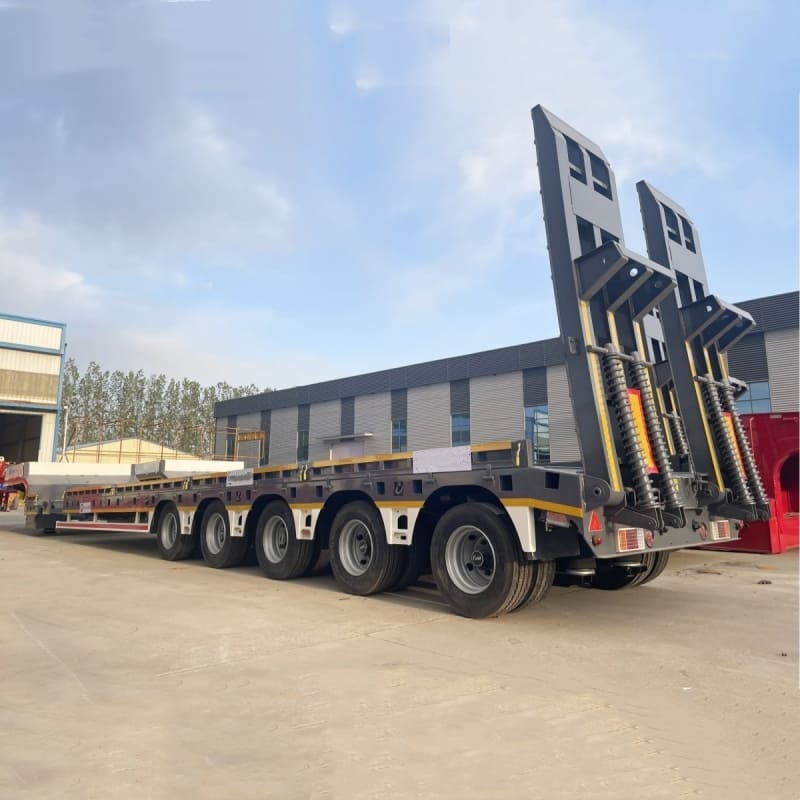

Reman 5 Axle Telescopic Extendable Lowbed Trailer
This reman telescopic trailer for sale adopts retractable platform design plus heavy-duty spring-loaded loading ramps at the rear. REMAN ROAD reinforced the entire main bearing beam and overhauled all five sets of axles & suspension systems, capable of transporting ultra-long oversized construction machinery while adapting to diverse road conditions.
Reman Telescopic Trailer for Sale Description
- REMAN ROAD reman telescopic lowbed trailer strictly abides by heavy haul special vehicle remanufacturing standards, starting work with complete vehicle disassembly.
- The reman telescopic low loader trailer stretchable main frame, five groups of heavy-duty axles, leaf spring suspensions, spring boarding ramps and pneumatic brake assemblies are all split into individual components.
- After shot blasting rust removal and metal thickness detection, bent beams and fatigue steel structures are mechanically corrected and welded for reinforcement; worn axle bearings, brake linings, ramp springs and stretch locking parts are swapped with OEM matching new accessories to restore the original maximum load-bearing capacity.
- The whole reman telescopic trailer for sale air brake system is re-laid with wear-resistant pipelines to resolve air leakage defects common on aged extended trailers.
- After assembly, full-load stretching tests, bumpy road simulation and long-distance highway endurance tests are carried out to guarantee reliable performance for oversized heavy machinery transportation projects.
Technical Parameter Configuration Table
- Name: Remanufactured 5 axle Extendable Low Loader Trailer
- Rated Loading Capacity: 100 – 120 Ton
- Main Frame Material: high tensile manganese steel; straightened, stress relieved and reinforced during remanufacturing
- Axle: 5 heavy-duty integrated trailer axles
- Platform Type: Freely extendable cargo deck, adjustable length for oversize loads
- Suspension: Reinforced multi-leaf spring mechanical suspension
- Brake System: Dual-line international standard air brake system
- Ladder: Double-side spring buffer folding climbing ramps, thickened high-strength steel plate welded structure
- Tire Spec: 11.00R20 / 12R22.5 heavy-duty trailer tires, 20 units
- Loading Feature: Reserved multiple tie-down lugs for machinery fixation
- Standard Reman Workflow: Full disassembly → Sandblasting cleaning → Flaw detection & frame correction → Axle & brake overhaul → Consumables renewal → Assembly calibration → Load & road testing
- Applicable Cargo: Excavators, loaders, bulldozers, cranes, all kinds of oversized construction machinery
Lowbed Trailer Remanufacturing Process
REMAN ROAD standardized lowbed trailer remanufacturing workflow covers full disassembly, structural repair, component renewal and strict factory testing to restore the used trailer to near-new performance standards.
- Full Trailer Disassembly & Load-Bearing Frame Inspection
The entire 5 axle extendable low loader trailer is completely taken apart. All steel frame structures, axles and braking components are cleaned and inspected for cracks, deformation and metal fatigue; defective structural sections are reshaped and reinforced to original design dimensions.
- Running Gear Overhaul & Pneumatic Brake System Full Renewal
All axles, leaf springs and wheel hubs are disassembled for maintenance, all worn vulnerable parts replaced. Air tanks, brake pipes and valve assemblies of the air brake system are comprehensively updated to guarantee sensitive, leak-free braking performance.
- Standardized Reassembly & Whole-Vehicle System Calibration
All refurbished components are assembled in line with industrial heavy trailer torque standards. Technicians adjust suspension preload, brake balance and onboard electrical circuits to ensure coordinated operation of all functional modules.
- Full-Load Durability Verification & Pre-Delivery Finishing
Carry out static heavy-load pressure testing, long-distance highway endurance trials and rough road vibration tests. After all indicators pass acceptance, anti-corrosion finishing painting and safety accessory installation are completed, with all overhaul documents sorted and archived prior to shipment.
Why Choose Reman Telescopic Trailer for Sale?
- Brand new extendable low loader trailer adopt original factory integrated welding technology with complete official warranty, yet they require extremely high initial procurement funds and have long production and delivery cycles.
- Ordinary second-hand lowbed trailers feature the lowest purchase price, but undiscovered frame fatigue, axle wear and brake faults will cause safety hazards and frequent breakdowns during oversized heavy machinery transportation.
- Simply surface-refurbished trailers only undergo exterior paint renewal and partial tire replacement, without frame disassembly and internal system overhaul, latent structural risks will rapidly appear under continuous ultra-heavy load operation.
- REMAN ROAD reman telescopic trailers for sale are restored via complete standardized reman procedures, with frame correction, axle overhaul and multi-round load verification finished, realizing safe heavy haul performance while greatly optimizing total full-lifecycle expenditure for global heavy equipment transport fleets.
