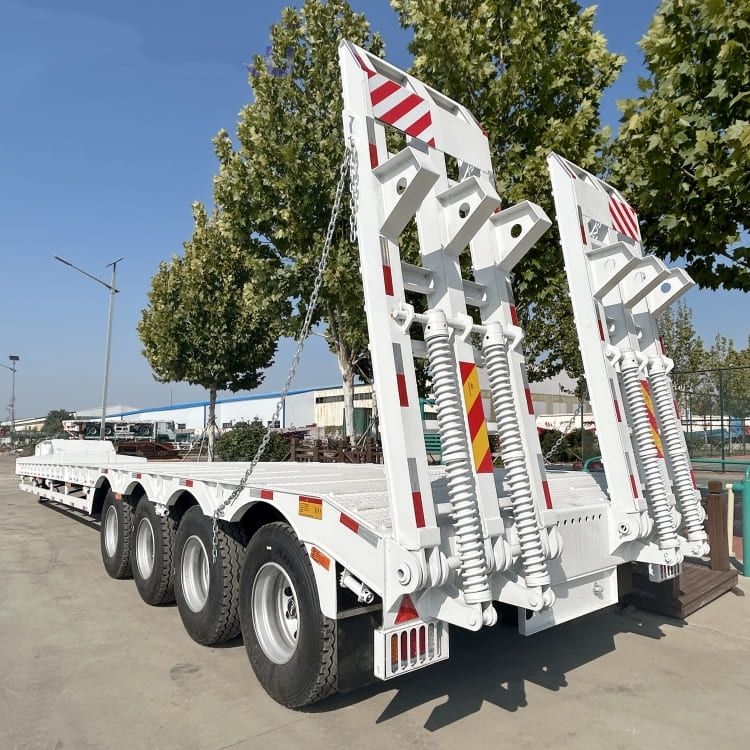

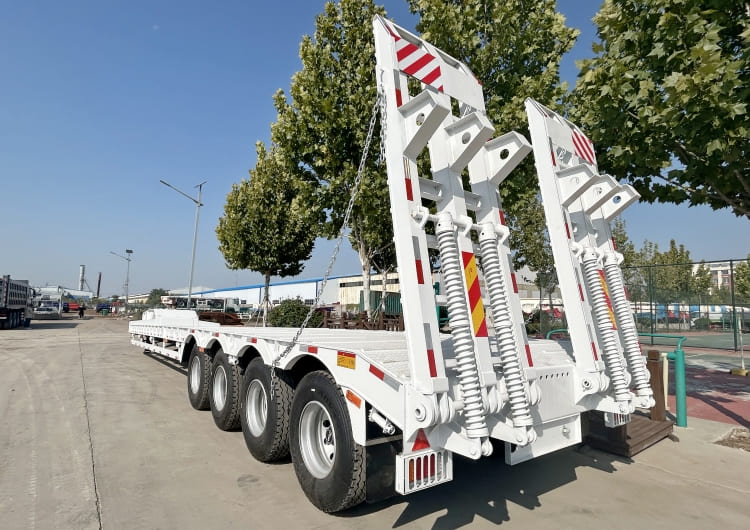

Reman 4 Axle 80 Ton Low Bed Trailer
This reman low bed trailers for sale is comprehensively renovated following professional lowbed trailer remanufacturing procedures. Its reinforced main beam, three heavy-duty axles, air brake system and spring-assisted loading ramps are fully inspected and renewed, specially designed for transporting various medium and large construction machinery.
Reman Low Bed Trailers Description
- This REMAN ROAD reman low bed trailers for sale is completely different from ordinary painted second-hand flatbed trailers, rebuilt under closed-loop industrial reman specifications focused on heavy machinery transportation.
- The entire 4 axle low bed trailer load-bearing frame, concave low platform, three axles, suspension assemblies, brake pipelines and spring ramp mechanism are fully disassembled into individual parts for detailed inspection.
- Technicians straighten bent longitudinal beams, repair welding cracks and eliminate metal fatigue brought by continuous overweight transportation; worn axle bearings, brake valves and ramp spring components are overhauled or replaced entirely, all aging rubber pipes, wiring and reflective safety accessories get full renewal.
- After precise assembly, technicians repeatedly debug ramp lifting elasticity and braking coordination, and the finished reman hydraulic low bed trailer undergoes static pressure load tests and highway driving simulation verification to guarantee safety when loading and transporting heavy engineering equipment.
Technical Parameter Configuration Table
- Name: Remanufactured 4 Axle Low Bed Trailer 80/100 Ton
- Rated Loading Capacity: 80 – 100 Ton
- Main Frame Material: Q355 high tensile manganese steel; straightened, stress relieved and reinforced during remanufacturing
- Axle: 4 heavy-duty integrated trailer axles

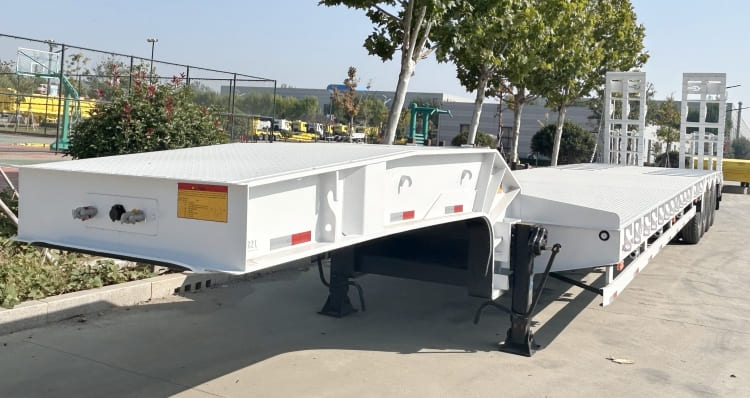

- Platform Type: Concave ultra-low gooseneck lowbed flat deck
- Suspension: Heavy-duty mechanical balanced suspension
- Brake System: Dual-circuit air brake + emergency parking brake

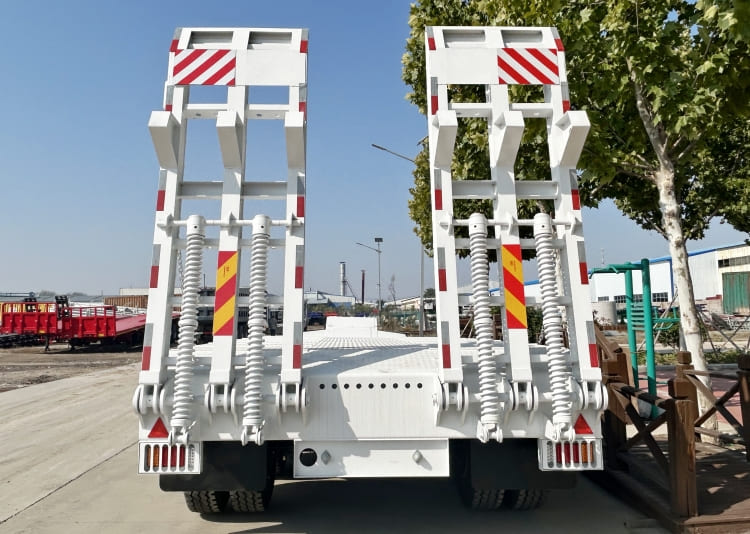

- Ladder: Double-side spring buffer folding climbing ramps, thickened high-strength steel plate welded structure
- Tire Spec: 11.00R20 / 12R22.5 heavy-duty trailer tires, 16 units
- Loading Feature: Reserved multiple tie-down lugs for machinery fixation
- Standard Reman Workflow: Full disassembly → Sandblasting cleaning → Flaw detection & frame correction → Axle & brake overhaul → Consumables renewal → Assembly calibration → Load & road testing
- Applicable Cargo: Excavators, loaders, bulldozers, cranes, all kinds of oversized construction machinery
Lowbed Trailer Remanufacturing Process
REMAN ROAD standardized lowbed trailer remanufacturing workflow covers full disassembly, structural repair, component renewal and strict factory testing to restore the used trailer to near-new performance standards.
- Pre-inspection & Vehicle Screening: Check overall frame deformation, axle wear, brake condition and service history of the incoming used lowbed trailer, eliminate severely damaged unrepairable units.
- Complete Full Disassembly: Take apart the whole 4 axle low bed trailer into frame beams, axles, suspension assemblies, brake pipelines, locking accessories and small spare parts one by one.
- Deep Cleaning & Sandblasting Rust Removal: Remove surface paint, rust, oil dirt and attachments from all steel structural components to expose raw metal base material.
- NDT Flaw Detection & Frame Rectification: Use professional testing equipment to check welding cracks, metal fatigue and beam bending; straighten deformed main beams and repair defective welding positions.
- Core Assembly Overhaul & Replacement: Disassemble 4 axles to replace worn bearings, adjust gear clearance; overhaul air brake chambers, valves and pipelines; renew all aging suspension elastic components.
- Consumables & Accessories Full Renewal: Replace tires, sealing rings, hydraulic hoses, wiring harnesses, safety reflectors and all vulnerable small parts with brand-new matched accessories.
- Precise Reverse Assembly: Assemble all renewed components step by step following factory torque standards, install and debug equipment fixed locking devices.
- System Calibration & Functional Debugging: Adjust braking synchronization, suspension balance and air circuit tightness to restore factory-standard running parameters.
- Performance Verification Tests: Carry out static overload load test, continuous road driving test and emergency brake test to confirm all indicators meet heavy haul requirements.
- Finishing Painting & File Archiving: Spray uniform anti-corrosion finish paint, paste safety signs, sort all overhaul records and archive permanently before delivery.
Why Choose Reman Low Bed Trailers for Sale?
- Brand new lowbed trailers adopt original factory integrated welding technology with complete official warranty, yet they require extremely high initial procurement funds and have long production and delivery cycles.
- Ordinary second-hand lowbed trailers feature the lowest purchase price, but undiscovered frame fatigue, axle wear and brake faults will cause safety hazards and frequent breakdowns during oversized heavy machinery transportation.
- Simply surface-refurbished trailers only undergo exterior paint renewal and partial tire replacement, without frame disassembly and internal system overhaul, latent structural risks will rapidly appear under continuous ultra-heavy load operation.
- REMAN ROAD reman low bed trailers for sale are restored via complete standardized reman procedures, with frame correction, axle overhaul and multi-round load verification finished, realizing safe heavy haul performance while greatly optimizing total full-lifecycle expenditure for global heavy equipment transport fleets.
