Remanufactured 2 Axle 40 Ton Low bed Semi Trailer
The 2 axle load-distributed design effectively disperses full-load pressure to protect the main frame from bending deformation. All reman lowbed semi trailer aging brake pipelines, wheel hubs, suspension leaf springs and ramp elastic components are completely replaced during renovation, supporting frequent machinery loading/unloading and continuous cross-border haulage without recurring mechanical failures.
Reman Lowbed Semi Trailer Description
- For transport fleet operators seeking a balance between heavy-load capacity and capital cost control, reman lowbed semi trailer bring remarkable long-term economic benefits.
- Brand-new 2 axle low bed trailer require large upfront capital investment and suffer from lengthy customized production cycles; unprocessed second-hand trailers undergo gradual structural aging and frequent brake malfunctions, which may trigger cargo shifting and transit safety accidents during machinery delivery.
- REMAN ROAD full-process reman system inspects, repairs and upgrades every load-bearing and functional component ranging from the main frame to running gear.
- The REMAN ROAD reman bed trailer exterior is sprayed with multi-layer anti-corrosion finish to withstand wind, sand, rain and ultraviolet erosion in diverse climatic zones; all road compliance safety accessories are updated to meet global highway access standards.
- This reman china low bed trailer achieves structural stability and load-bearing capacity equivalent to brand-new trailers at nearly half the cost, emerging as the preferred transportation equipment for global construction machinery dealers and logistics fleets.
Technical Parameter Configuration Table
- Name: Remanufactured Lowbed Trailer 2 Axle 40/60 Ton
- Rated Loading Capacity: 40–60 Ton
- Main Frame Material: high tensile manganese steel; straightened, stress relieved and reinforced during remanufacturing
- Axle: 2 heavy-duty integrated trailer axles
- Platform Type: Concave ultra-low gooseneck lowbed flat deck
- Suspension: Heavy-duty mechanical balanced suspension
- Brake System: Dual-circuit air brake + emergency parking brake

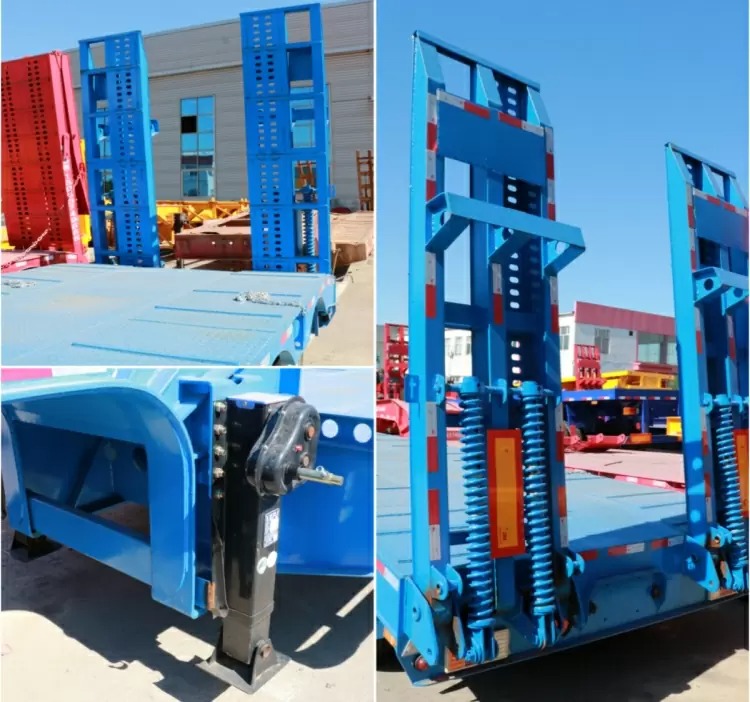

- Ladder: Double-side spring buffer folding climbing ramps, thickened high-strength steel plate welded structure
- Tire Spec: 11.00R20 / 12R22.5 heavy-duty trailer tires, 8 units
- Loading Feature: Reserved multiple tie-down lugs for machinery fixation
- Standard Reman Workflow: Full disassembly → Sandblasting cleaning → Flaw detection & frame correction → Axle & brake overhaul → Consumables renewal → Assembly calibration → Load & road testing
- Applicable Cargo: Excavators, loaders, bulldozers, cranes, all kinds of oversized construction machinery
Lowbed Trailer Remanufacturing Process
REMAN ROAD standardized lowbed trailer remanufacturing workflow covers full disassembly, structural repair, component renewal and strict factory testing to restore the used trailer to near-new performance standards.
- Full Trailer Stripping & Main Frame Defect Inspection
The entire 2 axle low bed trailer is fully disassembled. All load-bearing steel frames, axles, suspension and brake assemblies are deeply cleaned and inspected for cracks, deformation and metal fatigue; defective structural sections are reshaped and reinforced to original factory dimensional standards.
- Running Gear Overhaul & Ramp + Brake System Comprehensive Renewal
Each axle, wheel hub and leaf spring suspension is disassembled for maintenance, with all worn vulnerable parts replaced entirely. Air brake components and dual spring loading ramps are fully upgraded to deliver responsive braking and stable boarding support.
- OEM Standard Reassembly & Whole-Vehicle System Calibration
All refurbished components are assembled in accordance with heavy-duty vehicle torque specifications. Technicians adjust suspension preload, brake balance and onboard electrical circuits one by one to ensure synchronous and stable operation of all functional modules.
- Full-Load Durability Verification & Pre-Delivery Finishing Work
Conduct full-load bumpy road simulation, cyclic loading-unloading and downhill braking verification tests. After all performance indicators pass acceptance criteria, anti-corrosion finishing painting and safety accessory installation are completed, and all overhaul documents are sorted and archived before shipment.
Why Choose Reman Lowbed Truck Trailer for Sale?
- Brand new 2 axle low bed trailer adopt original factory integrated welding technology with complete official warranty, yet they require extremely high initial procurement funds and have long production and delivery cycles.
- Ordinary second-hand lowbed trailers feature the lowest purchase price, but undiscovered frame fatigue, axle wear and brake faults will cause safety hazards and frequent breakdowns during oversized heavy machinery transportation.
- Simply surface-refurbished trailers only undergo exterior paint renewal and partial tire replacement, without frame disassembly and internal system overhaul, latent structural risks will rapidly appear under continuous ultra-heavy load operation.
- REMAN ROAD reman lowbed semi trailer are restored via complete standardized reman procedures, with frame correction, axle overhaul and multi-round load verification finished, realizing safe heavy haul performance while greatly optimizing total full-lifecycle expenditure for global heavy equipment transport fleets.
