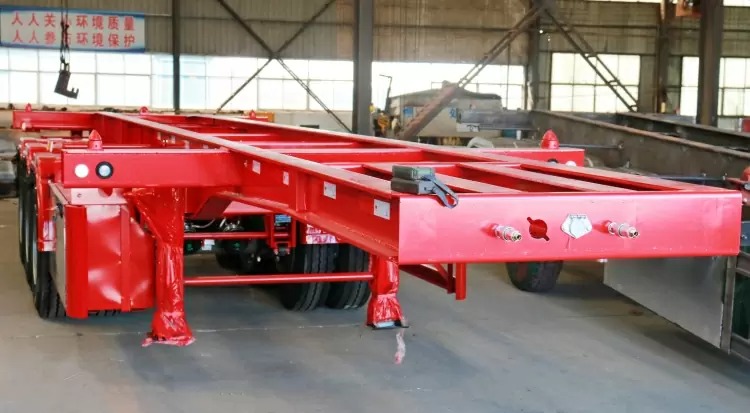

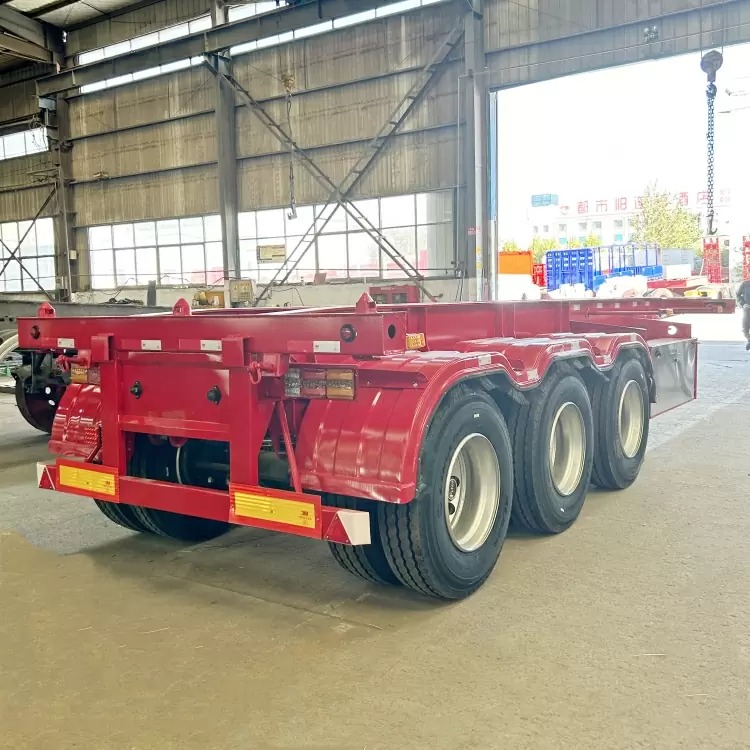

Remanufactured 3 Axle 40 Ft Skeletal Trailer
REMAN ROAD reman skeletal trailers for sale undergoes full industrial remanufacturing. We repair frame deformation, renew suspension, axles and braking systems, restoring overall performance close to new vehicles. Mainly used for container port transit and highway container haulage with superior cost performance.
Reman Skeletal Trailer Description
- REMAN ROAD reman skeletal truck trailer adopts standardized whole-process industrial remanufacturing, totally different from simple second-hand vehicle painting renovation.
- The whole reman skeletal trailers for sale is fully disassembled first: main beams are straightened to amend bending deformation caused by long-term container loading, internal metal fatigue and residual stress are eliminated.
- All welding joints pass ultrasonic flaw detection, cracks and stress concentration areas are secondarily reinforced to restore original chassis precision.
- Three axles, hubs and leaf spring suspension systems are fully overhauled, all aged wearing parts replaced with new accessories, and axle load distribution accurately calibrated.
- The dual-circuit air brake system is reconstructed with genuine WABCO components, multiple air tightness tests eliminate air leakage and braking deviation problems. Landing gear is maintained to guarantee stable lifting and parking.
- After sandblasting rust removal, the reman skeletal truck trailer vehicle is coated with anti-rust primer and finish paint for lasting corrosion resistance.
Pre-delivery no-load and full-load road tests adjust suspension and brake coordination, all renovation records are archived traceably. - For logistics and port enterprises, this remanufactured skeleton trailer owns the stability of new vehicles while greatly cutting procurement costs.
Technical Parameter Configuration Table
- Overall Dimension: 12500×2500×1460 mm
- Max Load: ≤60 ton, chassis rigidity recovered for long-term stable heavy loading
- Axles: 3 axles, full disassembly overhaul, wearing parts replaced, 3-axle load balanced
- Tires: 12 pcs 12R22.5, Damaged tires eliminated, qualified tires selected for long haul
- Suspension: Mechanical suspension, Fatigued leaf springs renewed, load evenly distributed on frame
- Landing Gear: JOST, Internal parts serviced and lubricated, smooth lifting without jamming
- Brake System: WABCO dual-circuit air brakeAir circuit fully renewed & leak tested
- Chassis Frame: Cross/long beams reinforced, welding joints consolidated to prevent heavy-load deformation
- Main Beam: Main beam straightened, metal fatigue eliminated, frame dimension restored to factory standard
- Lashing Points: All tie rings strengthened for firm cargo fastening
- Anti-Corrosion Treatment: Full derusting + dual anti-rust paint coating
- Pre-Delivery Test: Full-load road debugging, vehicle performance tuned close to new trailer
Trailer Remanufacturing Process
- Complete Disassembly & Full Chassis Flaw Detection
Take apart frame, axles, suspension, braking system and front bulkhead entirely. Use ultrasonic inspection to check beam deformation, metal fatigue and component wear, mark all repair areas.
- Main Beam Stress Relief, Calibration & Structural Reinforcement
Eliminate internal beam stress, straighten bent sections, thicken and reinforce stress concentrated welding points and front bulkhead.
- Axle Running Gear Comprehensive Overhaul
Disassemble every axle separately, replace all worn bearings, brake shoes and leaf springs, calibrate balanced load distribution of axles.
- Full Renewal of Air Brake & Pneumatic Pipeline System
Replace the entire air circuit, control valves and sealing components to eliminate air leakage hidden troubles permanently.
- Whole-Vehicle Synchronous Debugging & Load Parameter Calibration
Adjust brake pressure, suspension damping and lashing point tension to adapt to general bulk cargo full-load transportation conditions.
- Full-Load Endurance Test & Anti-Corrosion Coating Delivery
Simulate long-distance highway driving under full load to verify chassis stability; apply multi-layer anti-rust paint, archive all overhaul documents before shipment.
Why Choose Remanufactured Skeletal Trailer for Sale?
- Brand New Skeleton Trailer
Zero component wear, complete factory official warranty, stable container locking and highway safety performance. However, high purchase price and long production cycle bring heavy capital pressure to logistics and port enterprises. - Used Container Skeleton Trailer
Low upfront buying cost, yet accompanied by hidden frame metal fatigue, uneven three-axle load distribution and aging brake pipelines. Structural breakdowns often happen during long-distance container hauling, triggering cargo displacement, shipment delays and continuous extra maintenance spending. - Refurbished Skeleton Trailer
Only exterior repainting and individual damaged tire replacement are carried out, internal frame defects, suspension aging and brake hidden dangers are never solved. Massive mechanical faults will emerge soon after continuous heavy-load container operation. - REMAN ROAD Reman Skeletal Truck Trailer
All worn consumable parts fully replaced and chassis frame comprehensively restored through standardized industrial remanufacturing. Loading rigidity, braking stability and overall service life reach the level of brand-new trailers, meanwhile cutting procurement & daily operating expenses greatly, the most cost-efficient transportation solution for global port and cross-border container fleets.
