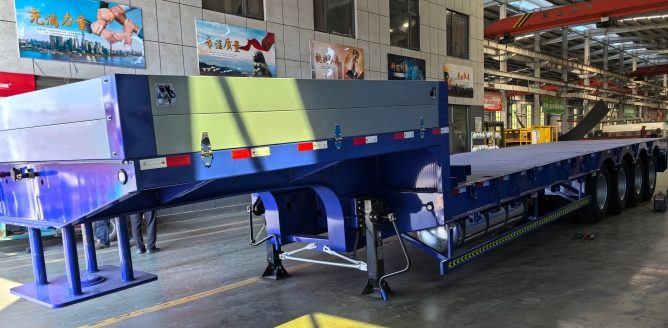

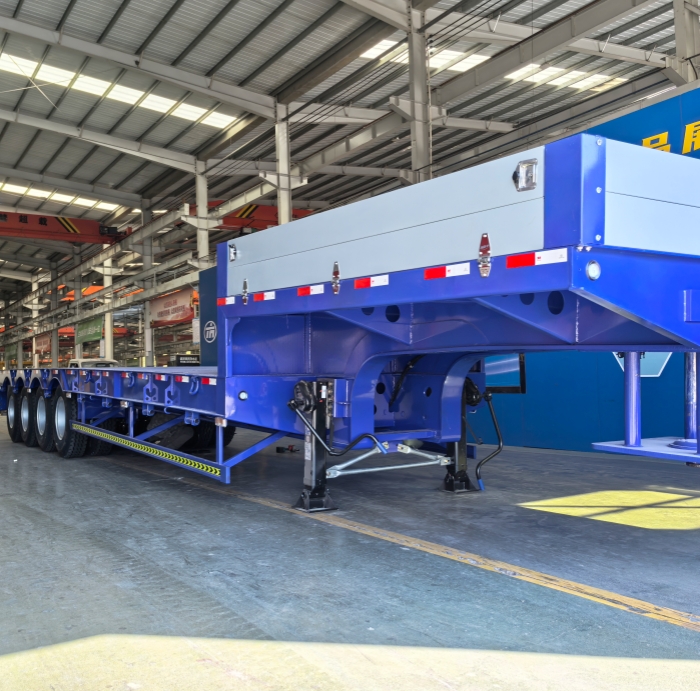

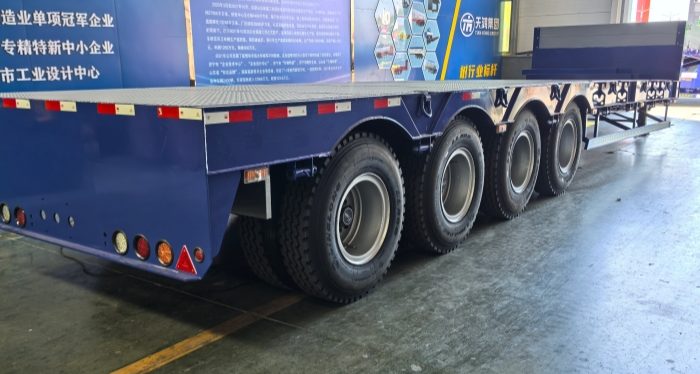

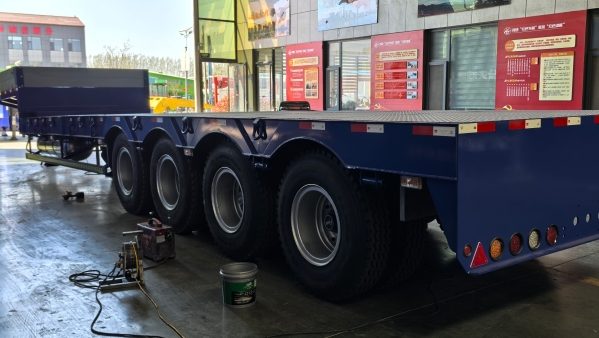

Reman 4 Axle Extendable Lowbed Semi Trailer
This reman extendable semi trailer for sale gains stable load-bearing performance through standardized lowbed trailer remanufacturing workflows. Its telescopic platform frame, four heavy-duty axles, air brake assembly and locking stretching mechanism are fully inspected and renewed, designed for hauling ultra-long, oversized heavy industrial goods and engineering machinery.
Reman Extendable Semi Trailer Description
- This reman extendable semi trailer for differs greatly from ordinary second-hand flatbed trailers with only cosmetic painting, rebuilt strictly according to closed-loop industrial reman standards for oversized long cargo transportation.
- The entire 4 axle extendable low loader trailer main load-bearing beam, telescopic stretching platform, four heavy-duty axles, mechanical suspension, air brake pipelines and length locking device are fully disassembled into individual components for comprehensive inspection.
- Technicians straighten bent longitudinal beams, repair welding cracks and eliminate metal fatigue from repeated overweight hauling; worn axle bearings, brake valves and telescopic sliding parts are overhauled or completely replaced, and all aging rubber hoses, wiring harnesses and safety accessories are fully updated.
- After precise assembly, technicians repeatedly debug the stretching locking tightness and braking balance, and the finished reman heavy haul trailers for sale undergoes static overload pressure tests plus continuous stretching cycle verification to guarantee safe and flexible length adjustment during oversized cargo delivery.
Technical Parameter Configuration Table
- Name: Remanufactured 4 Axle Extendable Low Loader Trailer 80/100 Ton
- Rated Loading Capacity: 80 – 100 Ton
- Main Frame Material: Q355 high tensile manganese steel; straightened, stress relieved and reinforced during remanufacturing
- Axle: 4 heavy-duty integrated trailer axles
- Platform Type: Ultra-low concave flatbed, manual hydraulic telescopic extendable structure
- Length Locking Device: Multi-position mechanical locking pins for fixing stretched deck length
- Suspension: Heavy-duty mechanical balanced suspension
- Brake System: Dual-circuit air brake + emergency parking brake
- Ladder: Double-side spring buffer folding climbing ramps, thickened high-strength steel plate welded structure
- Tire Spec: 11.00R20 / 12R22.5 heavy-duty trailer tires, 16 units
- Auxiliary Parts: Full safety reflective markings, mudguards, air storage tanks, spare tire bracket
- Loading Feature: Reserved multiple tie-down lugs for machinery fixation
- Standard Reman Workflow: Full disassembly → Sandblasting cleaning → Flaw detection & frame correction → Axle & brake overhaul → Consumables renewal → Assembly calibration → Load & road testing
- Applicable Cargo: Wind turbine components, long steel beams, oversized excavators, construction machinery, ultra-length industrial equipment
Lowbed Trailer Remanufacturing Process
REMAN ROAD standardized lowbed trailer remanufacturing workflow covers full disassembly, structural repair, component renewal and strict factory testing to restore the used trailer to near-new performance standards.
- Full Disassembly & Structural Inspection: The entire 4 axle extendable low loader is completely taken apart. All steel frames, axles and telescopic stretching parts are cleaned via sandblasting, then checked for cracks, bending deformation and metal fatigue. Damaged main beams are straightened and repaired thoroughly.
- Core Mechanism Overhaul & Renewal: Axles, air brake systems and the telescopic sliding stretching structure are fully disassembled for maintenance. Worn bearings, sliding rails and brake components are replaced; all aging rubber pipes, circuits and sealing consumables are updated entirely.
- Precision Assembly & Functional Debugging: All renewed components are reassembled strictly according to factory technical standards. Technicians repeatedly adjust the stretching flexibility, length locking tightness and braking balance to restore original running performance.
- Multi-Round Testing & Finishing Delivery: Static heavy load tests, cyclic stretching tests and full-load road driving inspections are carried out to verify overall safety. Finally, the REMAN ROAD reman extendable semi trailer for sale is painted with anti-rust finish, fitted with standard safety accessories, and all overhaul records are archived before shipment.
Why Choose Reman Low Bed Trailers for Sale?
- Brand new 4 axle extendable low trailers adopt original factory integrated welding and precise telescopic processing, with complete official after-sales service, but demand huge upfront capital investment and long production delivery cycles.
- Ordinary used stretch lowbed trailers boast low initial purchase price, yet undisclosed frame fatigue, sliding rail wear and brake faults will cause stretching failure and safety accidents during oversized heavy cargo transportation.
- Simply surface-refurbished trailers only receive exterior paint and partial tire replacement, without disassembly overhaul of frame and telescopic core components, latent functional faults will break down rapidly under continuous heavy load operation.
- REMAN ROAD reman extendable semi trailer for sale are restored via complete standardized reman procedures, finishing frame reinforcement, mechanism overhaul and multi-round functional verification, realizing flexible oversized haulage performance while greatly optimizing total full-lifecycle operating costs for global heavy logistics fleets.
