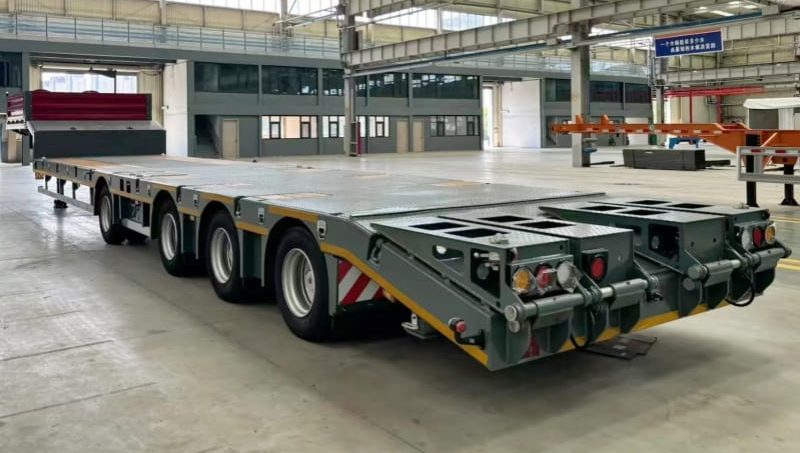

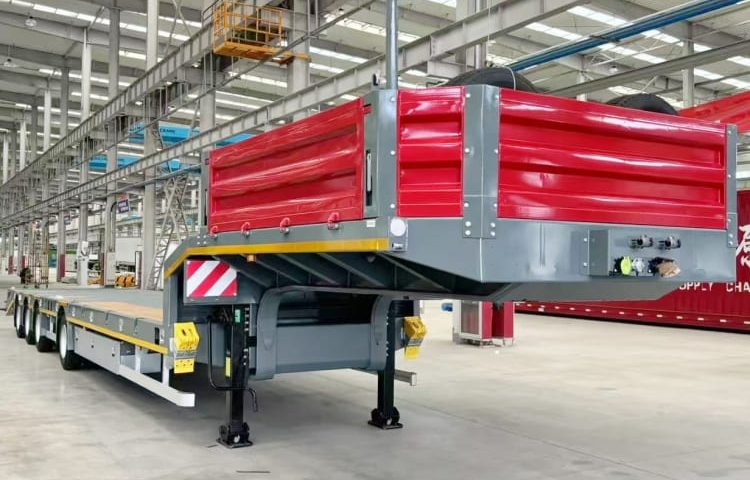

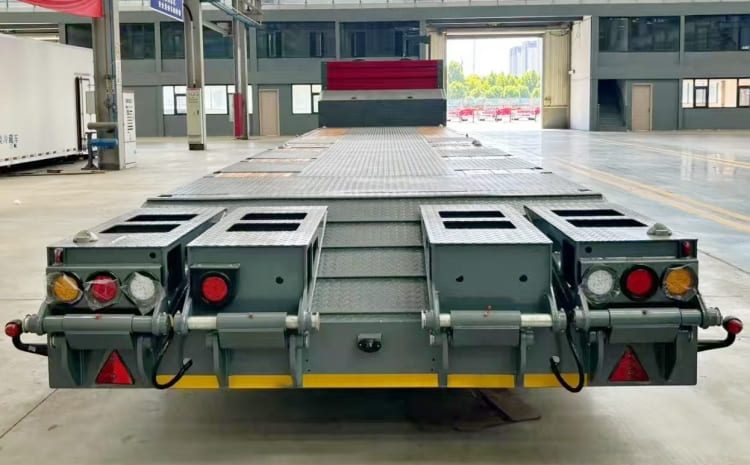

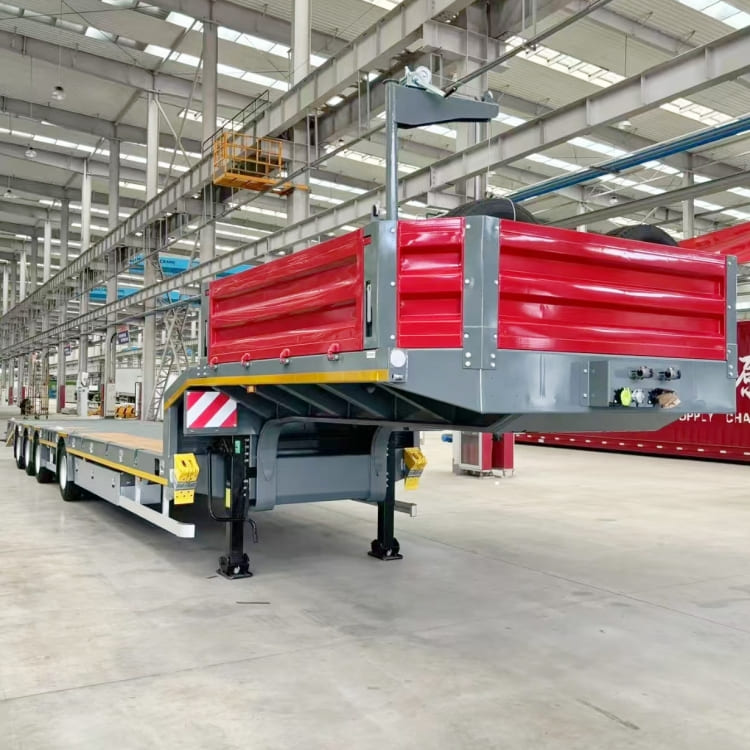

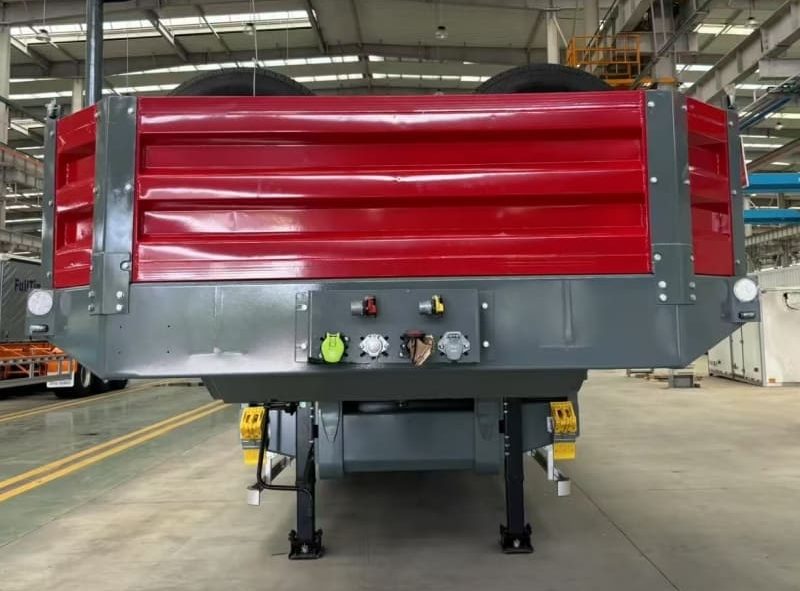

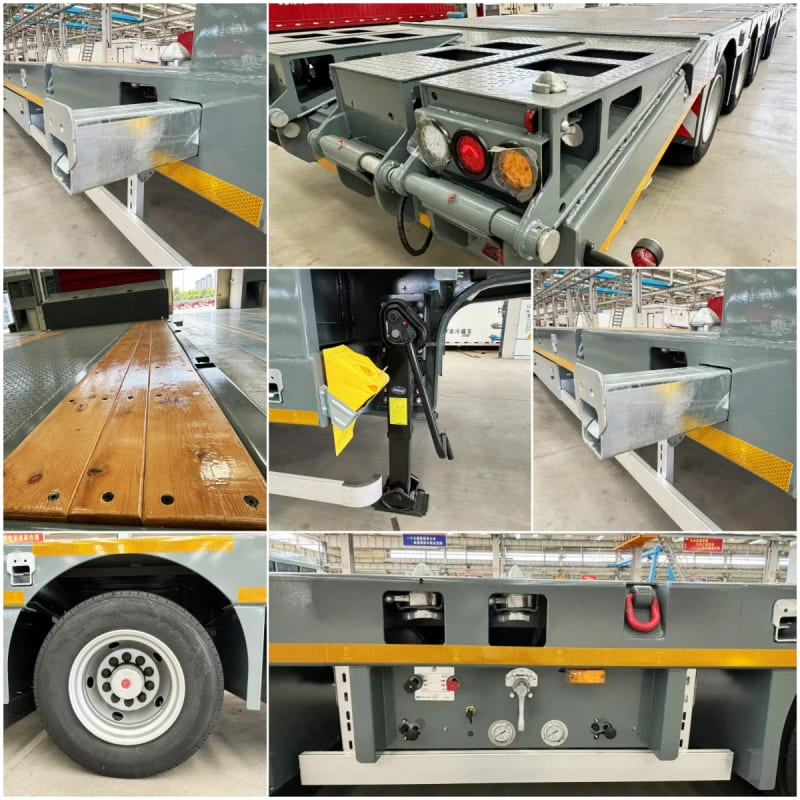

Reman 4 Axle Stretch Extendable Low Loader Trailer
Featuring adjustable telescopic deck structure, this reman extendable trailer for sale flexibly changes overall length to fit different oversized cargo sizes. Systematic reman work erases accumulated frame deformation and suspension wear caused by long-term heavy-load transportation, offering versatile haulage solutions for international heavy logistics companies.
Reman Extendable Trailer Description
- Controllable full-lifecycle costs and multi-scenario flexible applicability constitute the core competitive strength of REMAN ROAD reman extendable trailer for sale.
- Standardized remanufacturing procedures completely resolve hidden frame deformation, telescopic mechanism jamming and brake attenuation faults that widely exist on undocumented used stretch trailers.
- The whole reman extendable lowbed trailer is sprayed with anti-corrosion finish paint, all safety reflective signs are updated to comply with international oversized cargo transportation regulations.
- Complete overhaul archives record every restoration detail to facilitate regular maintenance planning for fleet managers.
- This REMAN ROAD reman extendable low loader trailer achieves loading capacity and functional stability comparable to brand-new extendable lowbed trailers, while cutting upfront procurement costs significantly, widely used in wind energy component delivery, steel structure transportation and cross-border oversized engineering equipment haulage projects.
Technical Parameter Configuration Table
- Name: Remanufactured Extendable Low Loader Trailer 4 Axle 80/100 Ton
- Rated Loading Capacity: 80 – 100 Ton
- Main Frame Material: Q355 high tensile manganese steel; straightened, stress relieved and reinforced during remanufacturing
- Axle: 4 heavy-duty integrated trailer axles
- Platform Type: Ultra-low concave flatbed, manual hydraulic telescopic extendable structure
- Length Locking Device: Multi-position mechanical locking pins for fixing stretched deck length
- Suspension: Heavy-duty mechanical balanced suspension
- Brake System: Dual-circuit air brake + emergency parking brake
- Ladder: Double-side spring buffer folding climbing ramps, thickened high-strength steel plate welded structure
- Tire Spec: 11.00R20 / 12R22.5 heavy-duty trailer tires, 16 units
- Auxiliary Parts: Full safety reflective markings, mudguards, air storage tanks, spare tire bracket
- Loading Feature: Reserved multiple tie-down lugs for machinery fixation
- Standard Reman Workflow: Full disassembly → Sandblasting cleaning → Flaw detection & frame correction → Axle & brake overhaul → Consumables renewal → Assembly calibration → Load & road testing
- Applicable Cargo: Wind turbine components, long steel beams, oversized excavators, construction machinery, ultra-length industrial equipment
Lowbed Trailer Remanufacturing Process
REMAN ROAD standardized lowbed trailer remanufacturing workflow covers full disassembly, structural repair, component renewal and strict factory testing to restore the used trailer to near-new performance standards.
- Full Disassembly & Structural Inspection: The entire 4 axle extendable trailer for sale is completely taken apart. All steel frames, axles and telescopic stretching parts are cleaned via sandblasting, then checked for cracks, bending deformation and metal fatigue. Damaged main beams are straightened and repaired thoroughly.
- Core Mechanism Overhaul & Renewal: Axles, air brake systems and the telescopic sliding stretching structure are fully disassembled for maintenance. Worn bearings, sliding rails and brake components are replaced; all aging rubber pipes, circuits and sealing consumables are updated entirely.
- Precision Assembly & Functional Debugging: All renewed components are reassembled strictly according to factory technical standards. Technicians repeatedly adjust the stretching flexibility, length locking tightness and braking balance to restore original running performance.
- Multi-Round Testing & Finishing Delivery: Static heavy load tests, cyclic stretching tests and full-load road driving inspections are carried out to verify overall safety. Finally, the REMAN ROAD reman extendable trailer for sale is painted with anti-rust finish, fitted with standard safety accessories, and all overhaul records are archived before shipment.
Why Choose Reman Low Bed Trailers for Sale?
- Brand new 4 axle extendable trailer adopt original factory integrated welding and precise telescopic processing, with complete official after-sales service, but demand huge upfront capital investment and long production delivery cycles.
- Ordinary used stretch lowbed trailers boast low initial purchase price, yet undisclosed frame fatigue, sliding rail wear and brake faults will cause stretching failure and safety accidents during oversized heavy cargo transportation.
- Simply surface-refurbished trailers only receive exterior paint and partial tire replacement, without disassembly overhaul of frame and telescopic core components, latent functional faults will break down rapidly under continuous heavy load operation.
- REMAN ROAD reman extendable lowbed trailer are restored via complete standardized reman procedures, finishing frame reinforcement, mechanism overhaul and multi-round functional verification, realizing flexible oversized haulage performance while greatly optimizing total full-lifecycle operating costs for global heavy logistics fleets.
